Branch Dampers vs. Volume Dampers
Left alone, a duct system feeds the outlets closest to the fan generously and starves the ones at the far end. Dampers fix that by adding resistance where the air wants to rush, so the far ends get their share. There are two kinds, and they do different jobs.
The Two Roles

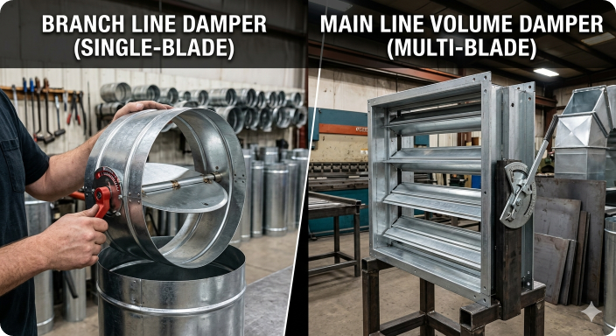

A branch damper sits where a major run splits off the trunk. It sets how much of the total air goes to that whole branch or zone.
A volume damper trims a single diffuser or register to its design airflow — the fine cut. Put it in the branch duct a few feet upstream of the outlet, not in the diffuser neck. Throttling at the neck is where that hiss the tenant complains about forever comes from.
Think of an irrigation system. The branch damper controls how much water goes to each zone. The volume damper fine-tunes the flow to each individual sprinkler head.
The Proportional Method
Good balancing is not nudging each diffuser until it looks right. The standard method works like this: measure every outlet. Find the one delivering the lowest percentage of its design flow — the "KEY". Set every other outlet on the branch to that same percentage. Then use the branch damper to bring the whole zone up together, and set the fan speed last, typically to within ±10% of design total.
The ritual exists because of physics: every damper you touch changes the pressure — and therefore the flow — at every other outlet on the system. By following this method you can balance in a single pass.
Where Jobs Go Wrong
• Dampers buried above hard ceilings. If the balancer cannot reach it, it cannot be set.
• Doing all the work at the diffuser. Choke one register hard enough and it whistles.
• Missing devices. TAB teams report missing balancing devices in there reporting. Every missing damper turns routine balancing into field modification — on somebody's dime.
Design It In
Most of the failures above are decided before the balancer arrives. On the drawings, that means a branch damper at every major takeoff and a volume damper in every outlet runout — shown, scheduled, and located where a tech on a ladder can reach them. Where a hard ceiling is unavoidable, spec an access door at the damper. If the design leans on diffuser-neck dampers or extractors as the balancing means, plan on noise complaints and field modifications. A damper is cheap at rough-in; adding one above a finished ceiling is not.
Lock It In
